Yamaha R-N2000A Network Receiver Lab Report

Lab Report

Tested in 'Pure Direct' mode the R-N2000A offers a full +42.5dB gain and more than meets its 2x90W/8ohm specification at 2x115W/8ohm and 2x185W/4ohm. Moreover there's sufficient capacity in Yamaha's familiar PSU design to sustain 130W, 241W and 407W into 8, 4 and 2ohm under dynamic conditions, with output held to 340W (or 18.4A) into very low 1ohm loads by its swift-acting protection circuit [see Graph 1, below]. Familiar? Yes, because there are many performance parallels with this new R-N2000A and the earlier A-S2000 [HFN Mar '08] and A-S3200 [HFN May '21], not least in its wide response flat to –1dB/100kHz and in its very low-noise balanced architecture that realises a wide 92.0dB A-wtd S/N (re. 0dBW). Distortion is low too, and impressively consistent with power output, from 0.0038%/1W to 0.0052%/10W and 0.0055%/100W (all re. 1kHz/8ohm). Versus frequency, distortion reaches a minimum of 0.002%/200Hz rising only slightly to 0.006%/20kHz (all re. 0dBW).

The digital performance is in large part determined by Yamaha's choice of ES9026PRO DAC, implemented here with its slow roll-off linear phase filter option, offering a mere 14dB of stopband rejection in lieu of much reduced ringing and a response (via the preamp outputs) that reaches out to –1.3dB/20kHz, –5.5dB/45kHz and –6.8dB/90kHz with 48kHz, 96kHz and 192kHz media, respectively. The A-wtd S/N ratio is a very respectable 113dB and low-level linearity is good to within ±0.1dB over a 100dB dynamic range while THD falls to as low as 0.0007-0.003% (20Hz-20kHz) over the top 30dB of its dynamic range. Correlated jitter is a low ~10psec at all sample rates (a feature of all properly implemented ESS Sabre DACs). PM

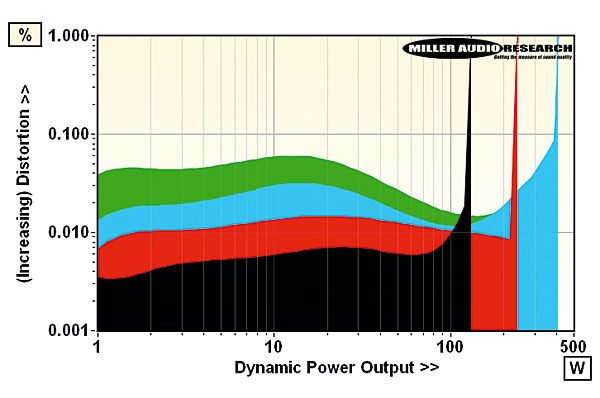

Dynamic power output versus distortion into 8ohm (black trace), 4ohm (red), 2ohm (blue) and 1ohm (green) speaker loads. Max. current is 18.4A

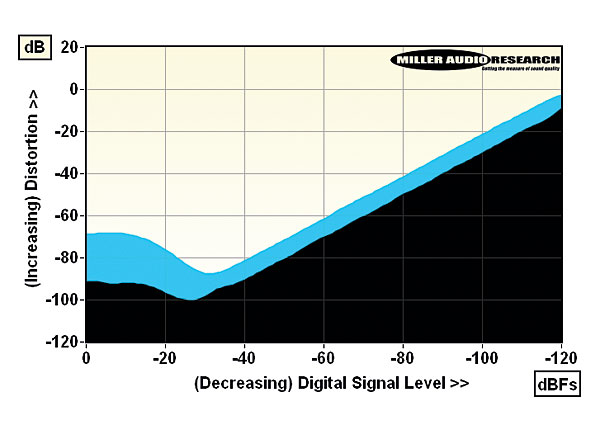

Distortion versus 48kHz/24-bit digital signal level (preamp output; 1kHz, black; 20kHz, blue)

Power output (<1% THD, 8/4ohm) 115W / 185W
Dynamic power (<1% THD, 8/4/2/1ohm) 130W / 241W / 407W / 340W
Output impedance (20Hz-20kHz) 0.023–0.060ohm (1.3kohm/pre)
Freq. response (20Hz-20kHz/100kHz) +0.0 to –0.09dB / –1.0dB
Digital jitter (48kHz/96kHz) 10psec / 8psec
A-wtd S/N ratio (re. 0dBW/0dBFs) 92.0dB (Analogue) / 113.1dB (Dig)
Distortion (20Hz-20kHz; 0dBW/0dBFs) 0.0023-0.0059% / 0.003-0.03%
Power consumption (idle/rated o/p) 48W / 319W (1W standby)
Dimensions (WHD) / Weight 435x157x473mm / 22kg
Price £2895
