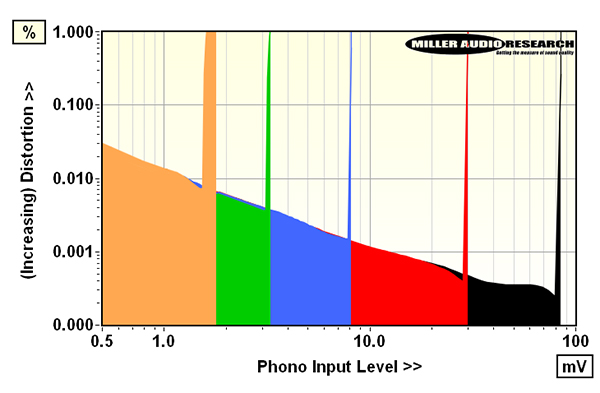

Michell’s principal claim for the Apollo is ‘low noise’ and this, as we will discover, is no idle boast although getting the best from this phono stage still requires a little fine-tuning. How so? Well, the indicated +40dB, +50dB, +60dB, +68dB and +73dB gain settings are rather wide of the mark because the Apollo is 2-3dB more sensitive in each position at +42.7dB, +52.2dB, +63.5dB, +71.7dB and +77.4dB, respectively. So, if you are using a typical ~5mV MM (an Ortofon 2M, for example) then you should stick to the +40dB setting where the input headroom is 86mV [black trace, Graph 1]. This represents a useful +25dB margin, but if you switch to the +50dB gain setting [red trace] then the input will clip at 30mV – a margin of just +16dB. You might be tempted by the phenomenal 94.5dB A-wtd S/N offered in the +50dB position but although this drops slightly to 88.8dB in the +40dB setting, the difference lies below the level of diamond-on-vinyl ‘roar’.

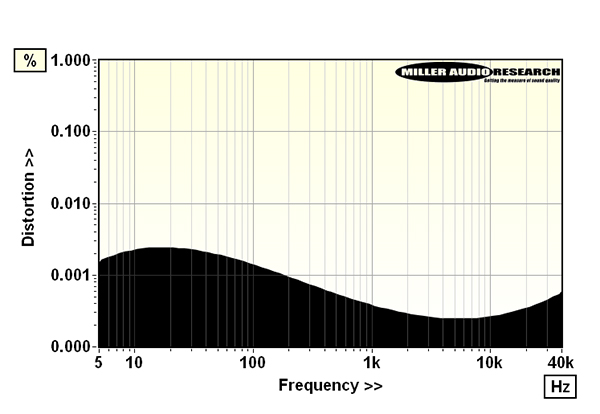

Of three notional MC settings, the +68dB gain (a sensitivity of 267μV re. 0dBV output) best matches most of the cartridges recently tested in HFN. The A-wtd S/N is a fine 79dB (re. 500μV) and the headroom is 3.2mV [green trace], or +22dB (re. 267μV). If your MC has an output closer to 500μV/0.5mV then use the +60dB gain setting. In all cases the Apollo’s response shows a slight (+0.15dB) lift from 20-200Hz while the subsonic roll-off of –3dB/2Hz suggests warped LPs or big, reflex-loaded loudspeakers should be avoided. The treble response tips slightly upwards, reaching +0.3dB/20kHz, before lifting to +3.4dB/100kHz. Distortion is fabulously low, reducing with level up to the maximum 11.5V output and typically falling with frequency from 0.0025% (20Hz) to 0.00025% at ~6kHz [see Graph 2]. PM
