Vintage

Second generation it may be, but this early 16-bit CD player still faced strong competition from Philips' first-generation CD100 [HFN Oct '11], CD303 [HFN Nov '13] and CD104 [HFN Apr '14]. Their 14-bit/4x technology offered the potential of lower distortion, a wider S/N and superior low-level resolution (+1.5dB over a 90-100dB dynamic range) – and all without the phase shift incurred by time-shared DAC. In practice, Sharp's own 16-bit DAC used here delivers better all-round results than we saw with B&O's CD50 [HFN May '15]. Both the Sharp and B&O players are otherwise built around a very similar (Aiwa-sourced) digital platform that includes Yamaha's YM2201F 2x oversampling filter.

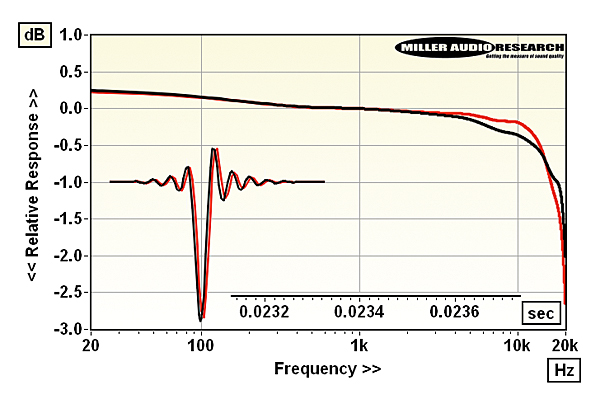

The impulse response [inset, Graph 2] shows the pre-ringing associated with this basic FIR 2x oversampled digital filter which offers a limited 22dB stopband rejection while also inverting absolute phase. It does reduce the interchannel phase-shift of a single time-shared DAC and while the frequency response [Graph 1] shows the same +0.25dB/20Hz bass lift we saw in the CD50, the DX-411H's custom analogue stage delivers a gently declining mid/treble trend that rolls away to –0.4dB/10kHz and –2.8dB/20kHz. In-band response ripples are also much reduced over those seen in earlier-generation players.

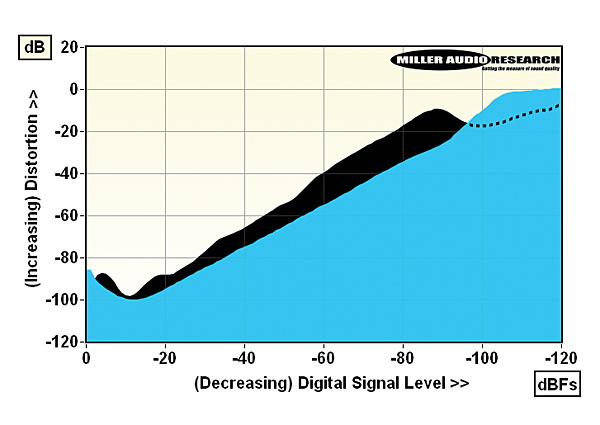

The DX-411H's 2.03V output level is standard and even if the ~3kohm impedance is really too high at least the 101dB A-wtd S/N ratio is acceptable, as is the –1.9dB error in resolution at –90dBFs and fairly consistent ~0.0025% THD from 20Hz-20kHz. At lower digital levels, the effect of Sharp's analogue filter reduces distortion harmonics at high frequencies [blue trace, Graph 2]. Jitter is a little high at ~1100psec – mainly data-induced and with ±100Hz switching noise from the PSU rectifier. PM
