Canton Vento 100 Loudspeaker Lab Report

Lab Report

With the Vento 100's 25mm ceramic dome tweeter situated below the 174mm 'titanium/graphite' mid driver, most seated listeners will be above the former if not directly in line with the latter. In practice this yields an impressively flat forward response [see Graph 1] albeit with a 2-3dB lift towards the treble at 10kHz which contributes to the mere ±2.1dB response error (200Hz-20kHz). Pair matching is a tight ~0.3dB through much of the bass and treble but widens to 0.95dB between 3-6kHz before the dome tweeter gets into its stride. The magnetically attached grille further suppresses the mild presence/treble lift [blue trace, Graph 1], squeezing the response errors to just ±1.7dB.

The new titanium alloy drivers are stiff and light but the midrange unit still shows a low-level mode above the 3.2kHz crossover at 4.6kHz [CSD waterfall, Graph 2] while the primary breakup of the tweeter can be seen at 25kHz with a harmonic at 40kHz [pink shaded area, Graph 1]. THD also increases from a low ~0.2% at bass frequencies to ~0.5% through the midrange where odd-order harmonics dominate. Sensitivity clocks in at 88.4dB/1kHz (88.2dB from 500Hz-8kHz), an average figure for a three-way bass reflex floorstander, albeit one with generous bass: the 45-145Hz (–6dB) bandwidth of the woofers, and broad 49Hz port tuning, delivers a corrected extension of 36Hz (–6dB re. 200Hz) and a boost in output at ~65Hz [green shaded area, Graph 1]. The speaker load is complex with additional reactive swings between 100Hz-10kHz – the minimum 3.1ohm/41Hz impedance, and modest –54°/20Hz to +23°/810Hz phase angles, contribute to a tough-ish EPDR of 1.38ohm/35Hz. PM

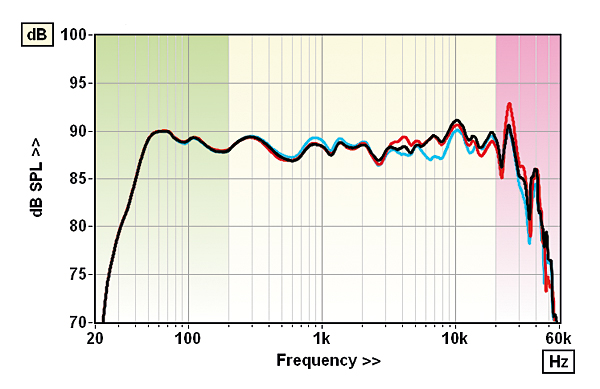

Response inc. nearfield summed driver/port [green], freefield corrected to 1m at 2.83V [yellow], ultrasonic [pink]. Left, black; right, red; w. grille, blue

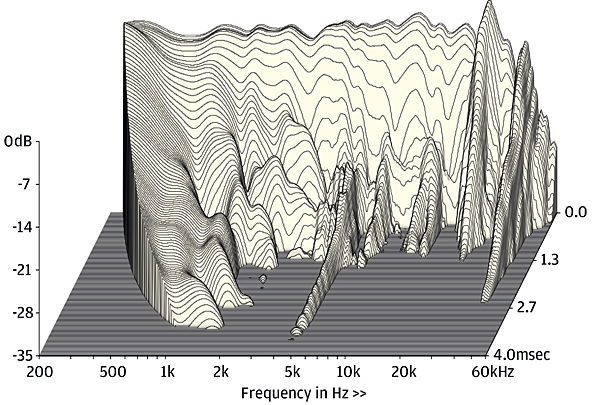

Canton Vento 100_Waterfall_35dB_R

Cabinet and broad driver resonances are well damped, leaving narrowband modes at 5kHz/25kHz

Sensitivity (SPL/1m/2.83V – 1kHz/Mean/IEC) 88.4dB / 88.2dB / 86.7dB
Impedance modulus: minimum & maximum (20Hz–20kHz) 3.16ohm @ 41Hz, 8.9ohm @ 3.37kHz
Impedance phase: minimum & maximum (20Hz–20kHz) –54° @ 20Hz, +23° @ 810Hz
Pair matching/Resp. error (200Hz–20kHz) 0.95dB/ ±2.1dB/±2.1dB
LF/HF extension (–6dB ref 200Hz/10kHz) 36Hz / 33.5kHz/31.3kHz
THD 100Hz/1kHz/10kHz (for 90dB SPL/1m) 0.2% / 0.5% / 0.4%
Dimensions (HWD) / Weight (each) 1155x325x420mm / 39kg
Price £5000 (black/white); £5250 (walnut/dark walnut)

Canton Elektronik GmbH + Co. KG
Supplied by: Signature Audio Systems, UK
07738 007776
